| IP명 | Single-Ended PAM-3 Transmitter with Time-Interleaved Multiplexing Driver | ||
|---|---|---|---|
| Category | Mixed | Application | DRAM |
| 실설계면적 | 1㎛ X 1㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 24GHz |
| 검증단계 | Silicon | 참여공정 | HM-2402 |
| IP개요 | In this design, a time-interleaved multiplexing driver for PAM-3 signaling is proposed. The proposed driver performs data multiplexing at the last stage of the transmitter, improving the output bandwidth with the PAM-3 signaling by 300% compared to the on-chip bandwidth. | ||

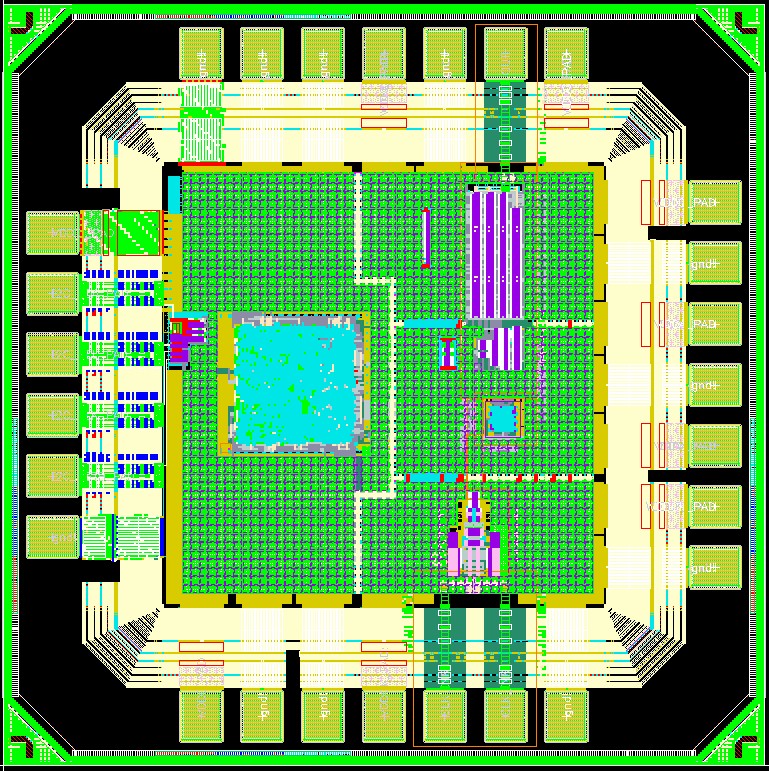

- 레이아웃 사진 -
|
|||
